Improve Workflow

Like all sound mixers, the Ui24R allows you to create groups of channels – so that they are easier to manage.

There are several kinds of relationship described by these groups:

  1. control – for example changing the volume of the group changes the volume of the group
  2. links – a simple channel to channel link that gives you a stereo pair of channels
  3. displays – the group is a collection of channels which can be shown on  the screen for easy access
  4. contains – if you were able to put your ear to the group you would here the collection of sound from all the channels contains, and you can apply EQ, gates and FX to the collection of sound

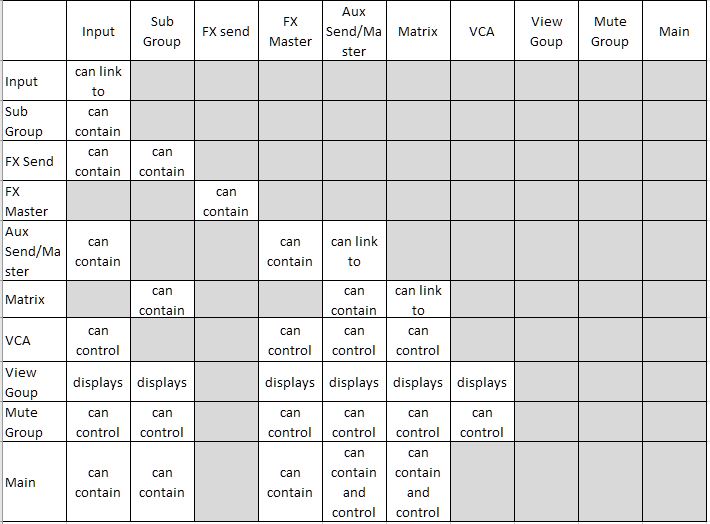

Read this table as the rows; so an FX Send can contain inputs and sub-groups.

Input

Inputs are the physical XLR inputs 1-20 plus Line 1 and 2 and Player 1 and 2. They are only groups to the extent that you can link adjacent pairs for stereo.

Sub-Group

Sub-Groups contain and combine audio signals both for level control as a group, but also allow you to apply EQ, Gate, Compression and FX to all channels in the group at one time.

FX Send

There are four FX Sends; each one can be assigned an effect eg delay, reverb.

Every Input and Sub-Group goes to all four FX Sends but sound is only passed to a Send if the fader is raised for the channel in the FX Send view

FX Master

This is the return for all its FX Sends.

An FX Master is stereo by default.

Aux Send/Master

There are eight Aux Sends; each a separate physical output from the mixer.

Every Input and FX Master channel goes to all eight Aux Sends but sound is only passed to a Send if the fader is raised for the channel In the Aux Send view.

An Aux Send can be paired with an adjacent Aux Send for stereo.

Uses are:

  1. Grouping a mix for monitor purposes – so a musician hears then channels they need.
  2. add low pass filter and send to  sub woofer

Matrix

A Matrix is a special Aux Send and can best be described as a mixer inside the mixer. In its most simple form, a matrix takes a selection of inputs (usually derived from the group and main output buses) and allows routing of those signals, complete with level control, to a series of outputs.

A Matrix can group Sub-Groups and Aux Sends, and can be paired with another Matrix for a stereo pair.

Uses include:

  1. add low pass filter and send to  sub woofer
  2. send the vocals to a separate PA and speakers
  3. send separate tracks to a DAW

[4.2.3: MATRIX]

VCA (Voltage Controlled Amplifier)

VCA groups act merely as a way to control the level of all channels assigned to them with a single fader. Relative channel volumes within the VCA can still be adjusted and the VCA will simply keep any mix level changes made to the channels.

A VCA can contain Inputs, FX Masters, Aux Sends and Matrixes, but not Sub-Groups.

For an overview of all the channels in these groups click Meters > VCA

Uses are:

  1. Grouping channels for easy management during a performance.

View Group

These are used to show selected channels on the screen at one time.

There are six View Groups. To assign channels to a View Group click and hold on the View Group in the home panel. Any channel can be assigned to any number of View Groups.

A View Group can display Inputs, Sub-Groups, FX Masters, Aux Sends and Matrixes and VCAs.

For an overview of all the channels in these groups click Meters > Views

Note that View Groups are stored per device and as cookies. If you want to save View Groups then go to the Settings page, scroll down and save your View Groups so you can load them into another device or back to the same one. They are not stored with Shows or Snapshots.

Mute Group

These are used to silence selected channels with one click.

There are six Mute Groups. To assign channels to a Mute Group click and hold on the View Group in the home panel. Any channel can be assigned to any number of Mute Groups.

A Mute Group can control Inputs, Sub-Groups, FX Masters, Aux Sends, Matrixes and VCAs.

For an overview of all the channels in these groups click Meters > Mutes

Main

The Main – the Master – channel, a stereo pair – contains the mix to go to the PA system.

The Master can contain Inputs, Sub-Groups, FX Masters, Aux Sends and Matrixes.

Organising Screens

Browsers

Edge

Internet Explorer F11

Patching Groups

The function of selecting which physical input appears on which channel in the mixer is handled by ‘patching’. The same physical input is normally sent to one channel but channels can be set to take input from the same physical input.



Saving and Transferring Settings

Note that some settings are Global (available to all devices using the Ui24R) but others are Local – so one tablet can see them but not a laptop.

To share settings, eg view groups, go to Settings – Local Settings, scroll down and select the ‘Local Settings Presets’ Button – Save under the name “Ron’s View groups” (for example).

On your other device, go to Settings – Local Settings,  scroll down and select the ‘Local Settings Presets’ Button – Load the previously saved local settings preset and voila, you have your viewgroups on the other device.
